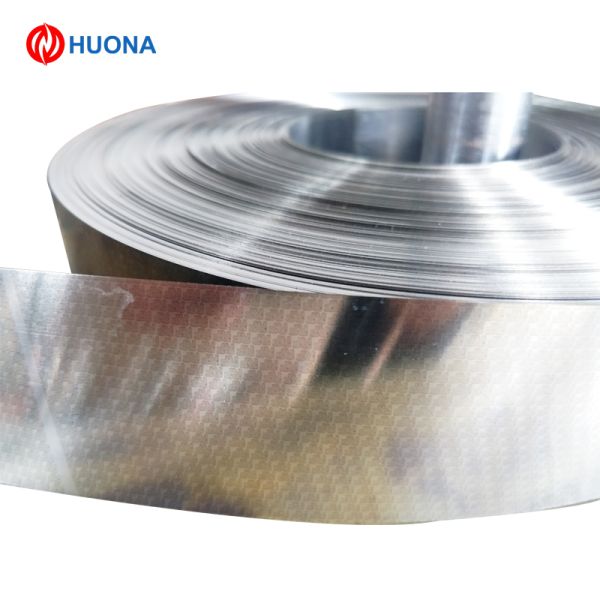

Huona Hot Sale TM-1/FPA223-80/5J1480 Bimetallic Strip 0.1mm Thickness × 100mm Width

Name: Huona Hot Sale TM1FPA223805J1480 Bimetallic Strip 01mm Thickness 100mm Width
Brand: Huona
Price: 1 USD

Brand Name : Huona

Model Number : TM-1

Certification : ISO9001

Place of Origin : Shanghai

MOQ : 20kg

Price : Negotiable

Payment Terms : L/C,T/T,Western Union,MoneyGram

Supply Ability : 500 tons per month

Delivery Time : 5-21days

Packaging Details : Carton/Wooden case

Product Name : TM-1/FPA223-80/5J1480 Bimetallic Strip

Thickness : 0.1mm (tolerance: ±0.003mm)

Width : 100mm (tolerance: ±0.15mm)

High expansive layer : Ni22Cr3

Low expansive layer : Ni36

Density : 8.2 g/cm³

Linear temperature range : -20~180 ℃

Allowable operating temperature range : -70~350 ℃

Contact Now

Product Description

TM-1/FPA223-80/5J1480 Bimetallic Strip (0.1mm Thickness × 100mm Width)

Product Overview

TM-1 bimetallic strip (0.1mm×100mm), a precision-engineered functional material from Huona New Material, is a thin-gauge composite strip composed of two dissimilar alloys with distinct thermal expansion coefficients—bonded via our proprietary hot-rolling diffusion technology. Optimized for ultra-thin applications requiring both miniaturization and reliable thermal actuation, this strip combines a fixed 0.1mm thickness (ideal for compact devices) with a 100mm standard width (suited for large-area temperature sensing or batch processing). Leveraging Huona’s expertise in thin-gauge composite manufacturing, the TM-1 grade delivers exceptional thermal sensitivity, uniform deformation, and strong interfacial bonding—making it a core component for micro-thermostats, precision temperature compensators, and miniaturized overheat protection devices.

Standard Designations & Core Composition

Product Grade: TM-1 (specialized bimetallic grade, tailored for ultra-thin gauge thermal responsiveness)
Dimensional Specification: 0.1mm thickness (tolerance: ±0.003mm) × 100mm width (tolerance: ±0.15mm)
Composite Structure: Typically features a high-expansion layer (e.g., Cu-Mn-Zn alloy, α≈20×10⁻⁶/℃) and a low-expansion layer (e.g., Fe-Ni 36 alloy, α≈1.6×10⁻⁶/℃), with interfacial shear strength ≥145 MPa (tested per GB/T 14985)
Compliant Standards: Adheres to GB/T 14985-2017 (Chinese standard for bimetallic strips) and IEC 60694 for thermal control components
Manufacturer: Huona New Material, certified to ISO 9001 and ISO 14001, with in-house thin-gauge rolling and precision slitting capabilities

Key Advantages (vs. Standard & Thick-Gauge Bimetallic Strips)

The TM-1 strip (0.1mm×100mm) stands out for its ultra-thin design and large-width suitability:

Ultra-Thin Precision: 0.1mm thickness (30% thinner than common 0.15mm strips) enables integration into micro-devices (e.g., wearable sensors, miniaturized circuit breakers) while maintaining strict thickness uniformity (±0.003mm) to avoid uneven thermal deformation.
Enhanced Thermal Sensitivity: High expansion coefficient ratio (~12.5:1) delivers a temperature-induced curvature of 12-15 m⁻¹ (at 100℃ vs. 25℃)—20% higher than thick-gauge strips (0.3mm+), ensuring fast actuation in low-power devices.
Large Width for Batch Processing: 100mm standard width matches industrial stamping panel sizes, allowing simultaneous production of 50+ micro-components (e.g., thermostat contacts) per strip—reducing processing time by 40% vs. narrow-width strips.
Strong Interfacial Bonding: Proprietary diffusion bonding technology eliminates delamination even after 8,000 thermal cycles (-40℃ to 180℃)—solving the common issue of thin-gauge bimetallics (≤0.1mm) being prone to layer separation.
Excellent Machinability: Ultra-thin gauge enables laser cutting into intricate micro-shapes (minimum feature size: 0.5mm) and tight bending (radius ≥1× thickness) without cracking—critical for automated assembly of compact devices.

Technical Specifications

Attribute	Value (Typical)
Thickness	0.1mm (tolerance: ±0.003mm)
Width	100mm (tolerance: ±0.15mm)
Length per Roll	50m - 200m (cut-to-length available: ≥50mm)
Thermal Expansion Coefficient Ratio (High/Low Layer)	~12.5:1
Operating Temperature Range	-40℃ to 180℃ (continuous); Short-term: up to 220℃ (≤30 minutes)
Actuation Temperature Deviation	±2℃ (at rated points: 50℃ - 150℃)
Interfacial Shear Strength	≥145 MPa
Tensile Strength (Transverse)	≥470 MPa
Elongation (25℃)	≥10%
Resistivity (25℃)	0.17 - 0.30 Ω·mm²/m
Surface Roughness (Ra)	≤0.6μm (mill finish)

Product Specifications

Item	Specification
Surface Finish	Mill finish (oxide-free) or passivated (optional, for 72-hour salt spray resistance)
Flatness	≤0.06mm/m (critical for uniform stamping and thermal deformation)
Bonding Quality	100% interfacial bonding (no voids >0.03mm², verified via X-ray inspection)
Solderability	Optional tin-plating (2-3μ thickness) for enhanced solderability in micro-connections
Packaging	Vacuum-sealed in anti-oxidation bags with desiccants; plastic spools (120mm diameter) to prevent strip warping
Customization	Adjustment of actuation temperature (40℃ - 180℃), width trimming (minimum 10mm), and pre-stamped micro-patterns

Typical Applications

Micro-Thermostats: Temperature control in wearable devices (e.g., smart watches), medical insulin coolers, and miniaturized HVAC systems (0.1mm thickness fits slim designs).
Precision Overheat Protection: Circuit breakers for lithium-ion batteries (e.g., drone batteries, wireless earbuds) and micro-motors (fast actuation prevents thermal runaway).
Large-Area Sensing: Thermal profiling strips for PCB boards (100mm width covers multiple components) and flexible electronics (uniform temperature response across the strip).
Consumer Electronics: Thermal actuators for laptop heat sinks, printer fuser controls, and smartphone battery protection modules.
Industrial Micro-Devices: Temperature-compensating shims for MEMS sensors (e.g., pressure sensors in autonomous vehicles) and tiny thermal switches for IoT devices.

Huona New Material subjects every batch of TM-1 strips (0.1mm×100mm) to rigorous testing: interfacial shear strength verification, 1000-cycle thermal stability tests, and laser-based dimensional inspection. Free samples (100mm×50mm) and thermal curvature vs. temperature curves are available upon request. Our technical team provides tailored support—including alloy layer optimization for specific actuation temperatures and micro-stamping process guidelines—to ensure the strip meets the demands of compact, high-precision applications.
